AMSOIL Signature Series Fuel-Efficient Synthetic ATF is recommended for transmissions and other applications that require any of the following specifications:
Product Application Specs
• Aisin-Warner AW-1
• BMW 83 22 0 142 516, 83 22 2 152 426, 83 22 2 289 720 (ATF3+)
• Chrysler MOPAR* 68157995A, SP-IV
• DSIH 6p805
• Ford MERCON* LV, SP
• GM DEXRON* HP, DEXRON* VI
• Honda/Acura DW-1*, Type 3.0
• Hyundai/Kia SP-IV, SPH-IV, SP-IV-RR, NWS-9638, SP4-M
• JASO 1A-LV; JWS 3324
• Mercedes Benz 236.12, 236.14, 236.15, 236.41
• Mitsubishi SP-IV, ATF J3, ATF-PA
• Nissan Matic-S, Matic-W
• Saab 93 165 147
• Shell M-1375.4, M-1375.5, M-1375.6, M-L 12108
• Toyota WS
• Volvo 31256774
• VW/Audi G 055 005, G 055 162, G 060 162; ZF S671 090 255
Note: Not for
use with CVT applications.
AMSOIL Signature Series Fuel-Efficient Synthetic ATF is backward compatible and replaces DEXRON III fluids in older GM automatic transmissions. (DEXRON VI specification supersedes the obsolete DEXRON III in GM vehicles.)
Transmissions in commercial vehicles, SUVs, trucks and vans; particularly those used for hauling or towing are subjected to severe-service operation and increased heat. Elevated temperatures cause fluids to break down, allowing damaging metal-to-metal contact and the formation of sludge and deposits. The problem is worse in modern transmissions with more gears, clutch packs and narrow oil passages that require clean, high-quality fluid to achieve maximum performance and life.
AMSOIL Signature Series Synthetic Automatic Transmission Fluid is specifically formulated to withstand the rigors of heavy towing, elevated temperatures and challenging terrain. It remains fluid in sub-zero temperatures and
provides reserve protection during heavy use and even abuse.
Proven in 180,000-mile, Severe-Service Taxi Fleet Field Trial

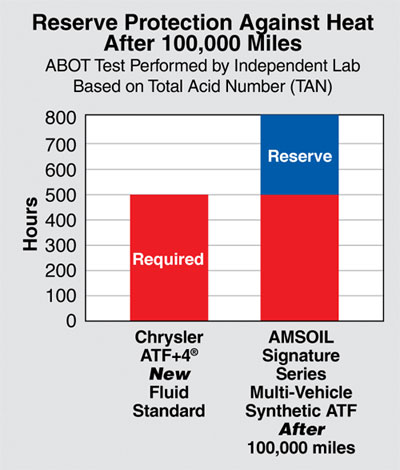

To demonstrate its effectiveness in severe service, Signature Series Multi-Vehicle Synthetic ATF was installed in Las Vegas taxi cabs. The vehicles routinely encountered demanding stop-and-go driving loaded with passengers and cargo, while the desert environment presented extremely hot ambient temperatures, placing enormous strain on the fluid. Following 180,000 miles, a transmission was selected for analysis. The Aluminum Beaker Oxidation Test (ABOT) is an industry standardized test used to determine a transmission fluid's oxidation resistance, which is a good indicator of its service life. Testing by an independent, third-party lab revealed that after 180,000 miles in severe service, Signature Series Multi-Vehicle Synthetic ATF resisted oxidation longer than required for new fluid to meet the Chrysler ATF+4 specification (see graph). Internal components, including the

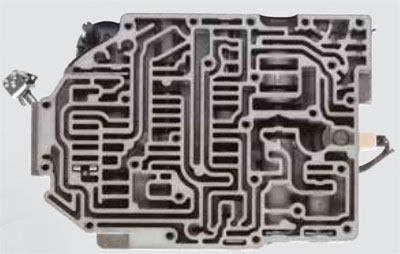

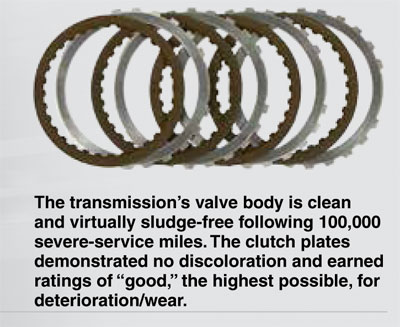

valve body and clutch plates (pictured), were virtually free of damaging sludge, deposits and wear, confirming the lubricant's high level of protection for severe-service applications.
Protects Against Thermal Breakdown
Signature Series Synthetic ATF is formulated with high concentrations of antioxidants, making it naturally heat resistant. It provides outstanding protection against sludge and varnish deposits that clog narrow oil passages and contribute to clutch glazing. After 180,000 miles in severe service, fluid analysis revealed Signature Series Multi-Vehicle Synthetic ATF contained 83 percent of its original oxidation inhibitors, proving its long-lasting resistance to thermal breakdown.
Outstanding Wear Protection
Varying speeds and loads causes torque multiplication and extreme stress on gears and bearings. AMSOIL formulated Signature Series Synthetic ATF
with high film strength and premium anti-wear/extreme-pressure additives to help prevent wear during severe service. In the industry-standard FZG Gear Wear Test, Signature Series Multi-Vehicle Synthetic ATF that had been used for 180,000 severe-service miles achieved a "Pass" at stage 12 - the highest stage. The results exceeded the Ford MERCON V and Chrysler ATF+4 specifications for new fluid, demonstrating the lubricant's long-lasting wear protection.
Cold, thick automatic transmission fluid lengthens shift times and reduces fuel economy. Signature Series Synthetic ATF is wax-free and delivers extraordinary cold-flow properties. It helps improve shift response, energy efficiency and warm-up times.
Today's transmissions are smaller and must withstand higher horsepower and torque while delivering smoother shifts, all with longer fluid life recommendations. AMSOIL Signature Series Synthetic ATF is formulated with friction modifier
additives that deliver outstanding clutch-holding capacity (static friction), torque-transfer ability (dynamic friction) and anti-shudder properties (slipping torque-converter clutches). Analysis reveals that after 180,000 miles in severe service, Signature Series Multi-Vehicle Synthetic ATF provides nearly identical friction properties as new fluid for smooth, reliable shifts.
Normal Service: Follow the vehicle manufacturer's normal-service drain interval.
Severe Service: Double the vehicle manufacturer's severe-service drain interval.
Change at the vehicle manufacturer's recommended drain interval outside U.S. and Canada.
HEALTH & SAFETY
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS).
Click here to view the MSDS Data Sheet for AMSOIL ATL.
Keep out of the reach
of children. Don't pollute. Return used oil to collection centers.
